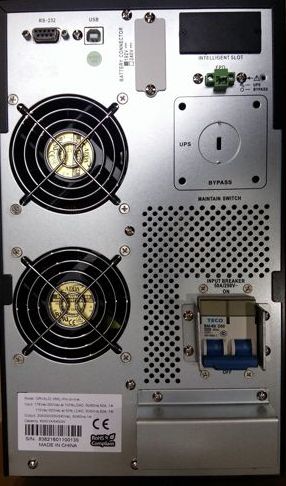

| Model |
ORVALDI V6K(L) on-line |
ORVALDI V6KR on-line |
ORVALDI V10K(L) on-line |
CoORVALDI V10KR on-line |
| Phase |
1 phase in / 1 phase out |
| Capacity |
6000 VA / 4800 W |
10000 VA / 8000 W |
| INPUT |
| Frequency Range |
46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system |
| Power Factor |
≧ 0.99 @ 100% load |
| Voltage Range |
| Low Line Transfer |
110 VAC ± 1% at 50% Load ; 176 VAC ± 1% at 100% Load |
| Low Line Comeback |
120 VAC ± 1% at 50% Load ; 186 VAC ± 1% at 100% Load |
| High Line Transfer |
300 VAC ± 3% |
| High Line Comeback |
290 VAC ± 3% |
|
| OUTPUT |
| Nominal Voltage |
208/220/230/240VAC |
| AC Voltage Regulation |
± 1% |
| Frequency Range (Synchronized Range) |
46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system |
| Frequency Range (Batt. Mode) |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio |
3:1 (max.) |
| Waveform (Batt. Mode) |
Pure Sinewave |
| Harmonic Distortion |
≦ 3 % THD (Linear Load), ≦ 6 % THD (Non-linear Load) |
| Transfer Time |
| Bypass to Inverter (Line mode) |
0ms |
| Bypass to Inverter (ECO mode) |
0ms |
|
| EFFICIENCY |
| Battery Mode |
89% |
| Line Mode |
90% |
| BATTERY |
| Standard Model |
| Battery Type |
12 V / 9 AH |
12 V / 9 AH |
12 V / 9 AH |
12 V / 9 AH |
| Numbers |
16 |
16 |
20** (16-20 adjustable) |
20** (16-20 adjustable) |
| Float Charging Voltage |
218.4 VDC ± 1% |
273 V DC± 1% (based on 20 pcs batteries) |
| Charging Current (max.) |
1A ~ 6A ± 10% |
1 A ± 10% |
1A ~ 6A ± 10% |
1.0 A ± 10% |
| Typical Recharge Time |
9 hours recover to 90% capacity |
|
| Long-run Model |
| Battery Type |
Depending on applications |
| Numbers |
16-20** (adjustable) |
| Charging Current (max.) |
6.0 A ± 10% |
2.0 A ± 10% |
6.0 A ± 10% |
2.0 A ± 10% |
| Float Charging Voltage |
273 VDC ± 1% (based on 20 pcs batteries) |
|
| INDICATORS |
| LCD Display |
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode |
Sounding every 4 seconds |
| Low Battery |
Sounding every second |
| Overload |
Sounding twice every second |
| Fault |
Continuously sounding |
| PHYSICAL |
| Standard Model |
| Dimension, D x W x H (mm) |
369 x 190 x 688 |
UPS Unit: 580x438x88 [2U] ; Battery Pack:580x438x133 [3U] |
442 x 190 x 688 |
UPS Unit: 668x438x88[2U] ; Battery Pack:580x438x133[3U] |
| Net Weight (kgs) |
60 |
UPS Unit: 15 ; Battery Pack: 48 |
75 |
UPS Unit: 18 ; Battery Pack: 63 |
|
| Long-run Model |
| Dimension, D x W x H (mm) |
369 x 190 x 318 |
580 x 438 x 88 [2U] |
442 x 190 x 318 |
668 x 438 x 88[2U] |
| Net Weight (kgs) |
21 |
15 |
23 |
18 |
|
| ENVIRONMENT |
| Noise Level |
Less than 55dBA @ 1 Meter |
Less than 58dBA @ 1 Meter |
| Operating Temperature |
0-95 % RH @ 0- 40°C (non-condensing) |
| MANAGEMENT |
| Optional SNMP |
Power management from SNMP manager and web browser |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
