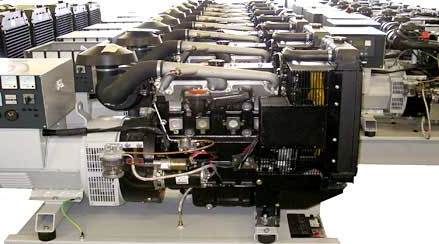

أورفالدي لحماية الطاقة: متخصصون في تقديم أجهزة على حسب الطلب لتلبية احتياجات الزبون. لديه مهندسو التصميم المدربون في استخدام التقنيات الحديثة لتصميم مجموعات من مولدات الطاقة و أنظمة التحكم التي تلبي احتياجات ال عملاء بالتحديد و الدقة. توفر مجموعة مولدات الطاقة من أورفالدي الطاقة الرئيسية او الاحتياطي للمستشفيات و المصانع و المكاتب و مواقع البناء و المطارات و البنوك و أنظمة الاتصالات أو حيث تكون الطاقة الموثوقة ضرورية.
ORVALDI control systems offer a wide range of specification from simple manual start system to the latest state of the art automatic starting. Fully automatic synchronising including auto start/stop on load demand for multi set systems is also available. A full range of automatic transfer switches (ATS) along with a full range of operational switchgear is also available. Auto Mains Failure Panels are designed to automatically start the generator and supply power within a few seconds of the loss of the mains. The AMF panel controls the generator operating conditions; it protects the generator in case of any malfunction; it stops the generator when the mains supply returns and then prepares the generator for a new start.

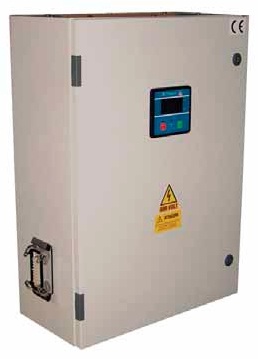

The Automatic Start panel is available as a:
• wall mountable panel or a
• free standing cubicle.
The front panel includes:
• digital read-out selection for: frequency, battery level, mains/generator voltage, current supplied by generator
• stop and start controls
• operating functions selection switch
• led warning lights for operating conditions control
• timer device for operating control program
• engine hourmeter.

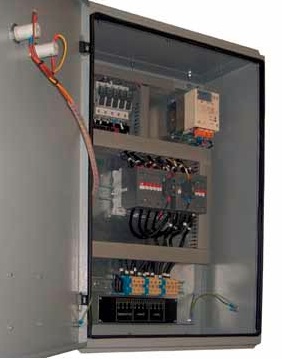

All circuits, (operating control, checking and regulation), are controlled by a led programmable microprocessor which enables the programming of the functioning parameters, according to the requirements of the particular application. The microprocessor card is positioned on the front panel, making it easy to replace if it gets damaged. Every on-going electrical signal is protected from any possible damage caused by mains over voltages. All the GenSet panels are provided with a four pole changing over, an automatic battery charger and a multiple cable for the connection with the generator.
Other optional features available on request are:
• long distance transmission remote control facilities for the alarm and operating conditions
• PC interface.
